EPHIL
XG-76CC-T pro

PROFESSIONAL GLOW-TYPE
GASOLINE ENGINE
FOR AIRPLANE

Precision Manufacturing

Stable RPM Maintenance

Linear Acceleration

Powerful Performance

Easy For Maintenance

Easy Remote Start

The XG-76cc-T opposite twin cylinder engine runs smoothly over the entire engine speed range.
The opposed crankshaft and piston eliminate most of the unwanted vibration during operation.
The light weight design allows the engine to have a superior thrust-to-weight ratio compared to other engines of the same displacement, making it very suitable for small-scale RC aircraft and UAVs.

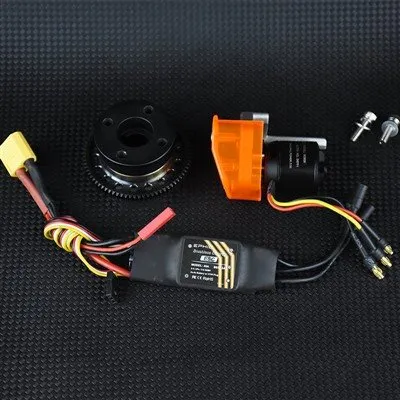

PRO Version Engine Comes With

EPHIL Engine Electric Starter

start the engine by just

one click
one second
one time

Patented Designed
User-Friendly
High Effeicient
Longer Lifespan
Quick Response
Light Weight
Safer

Motor ESC: 40A (Included now)
Input Voltage: 11V- 16.8V (3S-4SLiPo)
Motor Type: M2830B/ 1100KV
Net Weight (Starter): 125g
Net Weight (ESC): 36g

NOTE: This engine starter only fits EPHIL engines.

ephil aet-power system

Ignition unit with new intelligent algorithm

Variable energy output control technology

New generation ignition for the glow plugs

Small Size
Light Weight

Low EMI
High Stability

Low Voltage
Low Power Consumption

No Ignition Timing
No Ignition Angle

COMPONENTS

	XG-76cc-T	XG-76cc-T PRO
Engine	√	√
Walbro Carburator	√	√
Muffler Set (L & R)	√	√
Glow Plug x2	√	√
AET Power System	√	√
Gear-Drive Propeller Hub		√
Engine Starter		√
Starter ESC		√

XG-76cc-T Pro Standard Components

XG-76cc-T Pro ENGINE
With Walbro Carb
Gear-Drive Propeller Hub
Engine Starter

Engine Muffler Set (L&R)

E8
Glow Plug x2

Starter ESC

AET Power System
(lgnition Unit)

Aluminum Standoffs Set

Engine Operation Manual & Warranty Card

PARAMETERS

Model: XG-76cc-T Pro

Displacement: 76cc (4.64 cu in)

Performance: 9.0 HP

Speed Range: 1800-7300 RPM (Test Propeller-24*9)

Bore: 39 mm (1.54 in)

Stroke: 32.5mm (1.28 in)

Static Thrust: 18.5 kg @ 100 m ALT (40.8 lb @ 328 ft ALT)

Static Thrust: 16.8 kg @ 1800 m ALT (37.1 lb @ 5900 ft ALT)

Compression ratio: 9:1

Lubrication ratio: 30:1 (Fuel: 2-Stroke Motor Oil)

Ignition Voltage: 6-8.4 V

Glow Plug Type: E8 (or OS G5) Glow Plug & AET Power System

Recommended Propeller: 22x10; 23x8; 23x10; 24x8

Weight of Main Engine: 1940g

Weight of Muffler Set: 174g (L&R Mufflers; Screws)

Weight of Aluminum Standoffs Set: 72g

Weight of Glow Plug: 3.6*2 (E8*2)

Weight of AET (Ignition): 35g

Weight of Starter: 123g

Weight of ESC: 36g

Total Weight: 2264g (4.99 lb)
