Products
Product Introduction
EPHIL

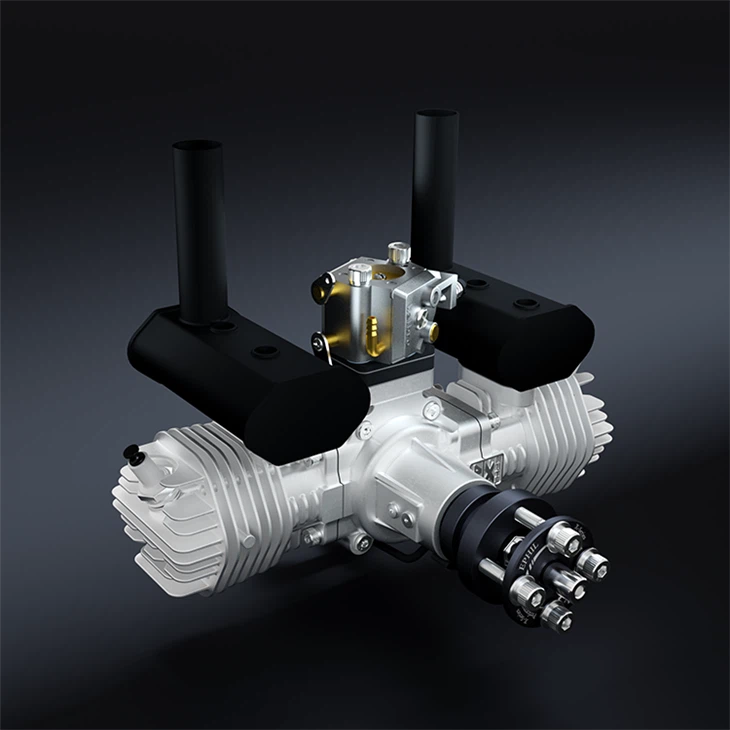

X-40CC-T
PROFESSIONAL GASOLINE ENGINE
FOR AIRPLANE
Precision Manufacturing
Stable Running
Long Life Span
Powerful Performance
Easy For Maintenance
The X series opposite twin cylinder engine runs smoothly over the entire engine speed range.
The opposed crankshaft and piston eliminate most of the unwanted vibration during operation.
The light weight design allows the engine to have a superior thrust-to-weight ratio compared to other engines of the same displacement, making it very suitable for small-scale RC aircraft and UAVs.
components

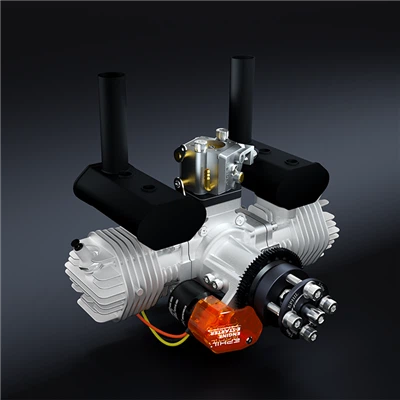

| X-40cc-T | X-40cc-T PRO | |
| Engine | √ | √ |
| Walbro Carburetor | √ | √ |
| Muffler Set (L & R) | √ | √ |
| CM6 lridium Spark Plug x2 | √ | √ |
| Electronic Ignition | √ | √ |
| Gear-Drive Propeller Hub | √ | |
| Engine Starter | √ | |
| Starter ESC | √ |
X-40cc-T Standard Components
X-40cc-T ENGINE
With Walbro Carb
Engine Muffler Set (L&R)
CM-6
lridium Spark Plug x 2
Electronic CDI
lgnition Mod
Aluminum Standoffs Set
Engine Operation
Manual & Warranty Card
PARAMETERS
Model: X-40cc-T
Displacement: 40cc (2.44 cu in)
Performance: 4.6 HP
Speed Range: 1800-8300 RPM (Test Propeller-20*8)
Bore: 32 mm (1.26 in)
Stroke: 27mm (1.06 in)
Static Thrust: 11.5 kg 100 m ALT (25.4 lb @ 328 ft ALT)
Static Thrust: 9.0 kg @ 1800 m ALT (19.8 lb @ 5900 ft ALT)
Compression ratio: 9:1
Lubrication ratio: 30:1 (Fuel: 2-Stroke Motor Oil)
Ignition Voltage: 6-14 V
Spark Plug Type: CM6 Iridium Spark Plug
Recommended Propeller: 20x 8; 20x10; 19x8; 19x10
Weight of Main Engine: 1150g
Weight of Muffler Set: 136g ( L&R Mufflers; Screws)
Weight of Aluminum Standoffs Set: 84g
Weight of Spark Plug: 13.5g*2 (CM6*2)
Weight of CDI (Ignition): 173g
Total Weight: 1570g (3.46 lb)
